| Nguồn gốc: | Made In China |
| Hàng hiệu: | Infinity Machine |
| Chứng nhận: | CE ISO |
| Số mô hình: | ID6150 |
| Số lượng đặt hàng tối thiểu: | 1 |
|---|---|
| Giá bán: | Negotiate |
| chi tiết đóng gói: | Clear sheet+sponge+wood carton |
| Thời gian giao hàng: | 20-30 days after order confirmed |
| Điều khoản thanh toán: | TT PAYPAL Moneygram and so on |
| Khả năng cung cấp: | 200 sets / month |
| Hành trình trục Y:: | 300MM | Tên sản phẩm: | Máy kiểm tra va chạm quả bóng rơi tự động ba trục |
|---|---|---|---|
| Công suất nhà máy:: | 1200W | Phạm vi tốc độ trục X:: | 1 ~ 100mm/giây |
| Lỗi chiều cao:: | ±1mm | Kích thước thiết bị:: | 1140×1200×2700mm |
| Ứng dụng:: | Máy sử dụng chế độ điều khiển PLC, vòi hút sử dụng áp suất âm chân không, giữ các quả bóng thép có k | Hành trình trục X:: | 420mm |

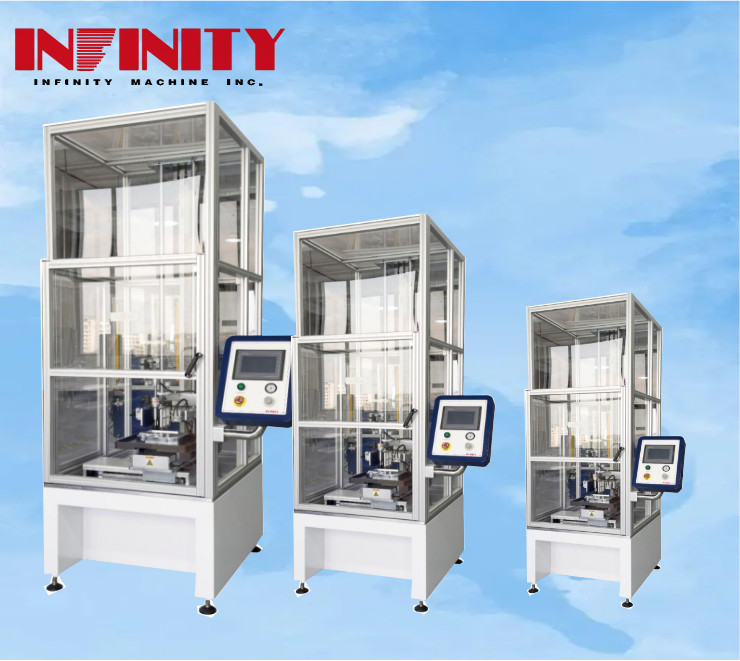

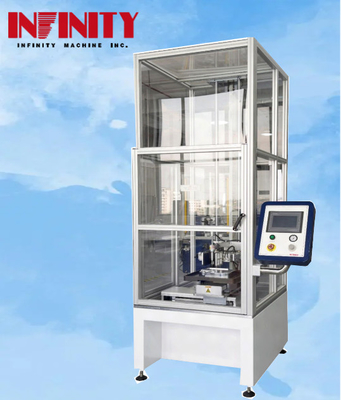

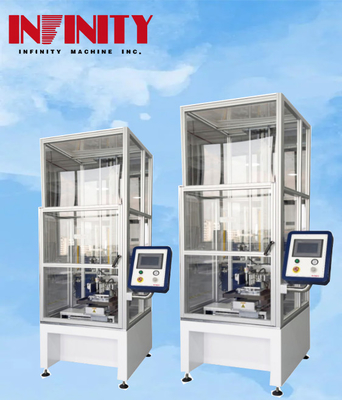

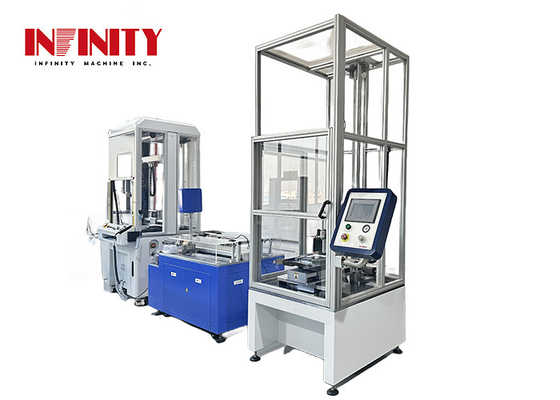

Automatic Multi-point Cycle Test Impact Testing Machine for Steel Ball Free Fall Test
One of the unique features of this Drop Ball-impact Tester is its use of a vacuum adsorption method to absorb steel balls, which is more accurate than the mechanical claw drop method. Additionally, the machine has an integrated high-speed X-Y platform that can be programmed to realize automatic multi-point cycle test, improving test efficiency. The X, Y, and Z axis are driven by Japan Panasonic servo motor, precision ball screw drive, low noise, and durable use.
The machine is designed for global customers with a simplified / English interface, making it easy for anyone to operate. The software operation interface is simple and easy to operate, with a designed anti-stay function to ensure the accuracy and safety of each test. The device also features a unique automatic reset and automatic pickup function, which can realize unattended and automatic cycle test.

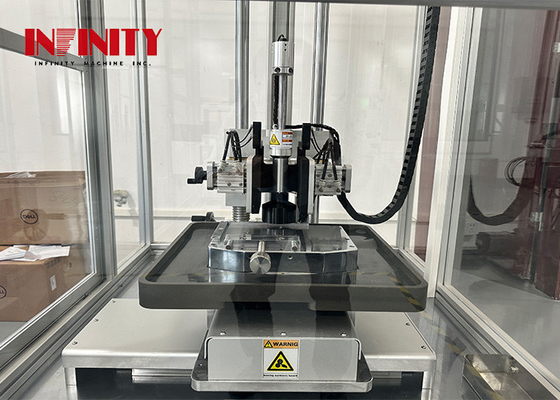

This Three-axis Automatic Drop Ball Machine adheres to conventional test setting parameters, where the steel ball impacts on the sample during starting and running, and the steel ball springs and is clamped by the splint to prevent secondary impact on the sample. When the X-Y platform is positioned at the position of the cone hole and the ball coaxis, the cylinder is released and drops the steel ball, and the steel ball is automatically reset to the center of the cone hole. After the Z-axis drops the ball, the cycle is executed.
The whole machine adopts floor structure design, and the operation panel can rotate, allowing the operator to be closer to the test area, making it more convenient for sample loading and unloading. The equipment provides the perfect fault detection mechanism of the operation state, and provides the corresponding error information prompt. The machine conducts real-time detection and processing of servo failure, sensor fault, X, Y, and Z-axis limit fault, protecting personal and equipment safety to the fullest.
The device is also equipped with an infrared laser function, which can accurately locate the position of the landing point and facilitate the tester to accurately determine the test position. The test formula is stored in the ROM of the system, which is simple and convenient to read and change the test position.
Device control interface:
| Application | The Machine Adopts PLC Control Mode, The Suction Nozzle Uses Vacuum Negative Pressure, Holding Different Sizes Of Steel Balls, Press The Drop Button, The Suction Nozzle, The Steel Ball Will Be Used As Free Fall Test, Impact The Surface Of The Sample, And Test The Impact Resistance Of The Sample, Which Is Suitable For The Impact Test Of Mobile Phone, Tablet, Audio And Other Electronic Products. |
|---|---|
| Features | The Equipment Uses Vacuum Adsorption Method To Absorb Steel Balls, Which Is More Accurate Than The Mechanical Claw Drop Method. At The Same Time, With The Integrated High-speed X-Y Platform, It Can Be Programmed To Realize Automatic Multi-point Cycle Test And Improve The Test Efficiency. X, Y And Z Axis Are Driven By Japan Panasonic Servo Motor, Precision Ball Screw Drive, Low Noise And Durable Use. Language Has Simplified / English Interface, Suitable For Global Customers. Software Operation Interface Is Simple And Easy To Operate. The Program Has A Designed Anti-stay Function To Ensure The Accuracy And Safety Of Each Test. Unique Automatic Reset And Automatic Pickup Function, Can Realize Unattended And Automatic Cycle Test. According To The Conventional Test Setting Parameters, The Steel Ball Impacts On The Sample During Starting And Running, And The Steel Ball Springs And Is Clamped By The Splint To Prevent Secondary Impact On The Sample. When The XY Platform Is Positioned At The Position Of The Cone Hole And The Ball Coaxis, The Cylinder Is Released And Drops The Steel Ball, And The Steel Ball Is Automatically Reset To The Center Of The Cone Hole. After The Z Axis Drops The Ball, The Cycle Is Executed. The Whole Machine Adopts Floor Structure Design, The Operation Panel Can Rotate, So That The Operator Closer To The Test Area, More Convenient Sample Loading And Unloading. The Equipment Provides The Perfect Fault Detection Mechanism Of The Operation State, And Provides The Corresponding Error Information Prompt, And Conducts Real-time Detection And Processing Of Servo Failure, Sensor Fault, X, Y And Z Axis Limit Fault, So As To Maximize The Protection Of Personal And Equipment Safety. The Device Is Equipped With Infrared Laser Function, Which Can Accurately Locate The Position Of The Landing Point And Facilitate The Tester To Accurately Determine The Test Position. The Test Formula Is Stored In The ROM Of The System, Which Is Simple And Convenient To Read And Change The Test Position. |
| X-axis speed range | 1~100mm/s |
| Y-axis velocity range | 1~100mm/s |
| Test height | 50-1200mm |
| Height error | ±1mm |
| Acrylic ball specification | 160g Or As Specified |
| Equipment size | 1140×1200×2700mm |
| Z-axis velocity range | 1-200mm/s |
| Plant capacity | 1200Ｗ |
Infinity Machine ID6150 Three-axis Automatic Drop Ball Machine is a high-quality product made in China, certified with CE and ISO standards. It has a minimum order quantity of 1 and a negotiable price. The packaging details include a clear sheet, sponge, and wood carton. The delivery time is 20-30 days after order confirmation, and payment terms include TT, PayPal, Moneygram, and other options. The supply ability of this product is 200 sets per month.
The Infinity Machine ID6150 Three-axis Automatic Drop Ball Machine is designed for testing the impact resistance of various materials and components. It is widely used in scientific research institutes, quality inspection agencies, manufacturing enterprises, and other fields. The Y-axis velocity range of this product is 1~100mm/s, and the Z-axis velocity range is 1-200mm/s. The Y-axis itinerary is 300mm, and the test height is 50-1200mm. The height error is ±1mm.
The Drop Ball-impact Tester can be used to test the impact resistance of electronic products, electrical appliances, toys, ceramics, glass, plastic, and other materials. It can also be used to evaluate the safety performance of helmets, protective gear, and other protective equipment. The Infinity Machine ID6150 Three-axis Automatic Drop Ball Machine is suitable for testing products in various industries, such as automotive, aerospace, construction, and packaging.
The Three-axis Automatic Drop Ball Machine can simulate the impact of falling objects on products from different angles and heights. It can perform multiple tests with high accuracy and repeatability. The test results can be used to improve the design and manufacturing process of products, reduce the risk of product failure, and ensure the safety and reliability of products. The Infinity Machine ID6150 Three-axis Automatic Drop Ball Machine is an essential tool for product development and quality control.
Action flow chart:
Our Impact Testing Machine is designed to deliver accurate and reliable results for determining the impact resistance of materials. To ensure the proper function and maintenance of your machine, we offer comprehensive technical support and services.
Our team of experienced technicians can provide on-site installation and training for your staff to ensure a seamless integration of the machine into your workflow. We also offer calibration services to ensure the accuracy of your results, as well as routine maintenance and repair services to keep your machine running smoothly.
If you encounter any issues with your Impact Testing Machine, our technical support team is available to provide remote assistance or on-site troubleshooting and repair. We are committed to providing exceptional service and support to our customers to ensure the long-term success of your investment.
Product Packaging:
The Impact Testing Machine will be packed using high-quality materials to ensure safe transport. The machine will be placed in a sturdy wooden crate and secured with high-strength straps to prevent any movement or damage during shipping.
Shipping:
The Impact Testing Machine will be shipped through a reliable and trusted shipping company. The shipping cost will be calculated based on the destination and weight of the machine. The customer will be provided with a tracking number to monitor the shipment's progress and estimated delivery date.
Q: What is the brand of the impact testing machine?
A: The brand name of our impact testing machine is Infinity Machine.
Q: What is the model number of the impact testing machine?
A: The model number of our impact testing machine is ID6150.
Q: Where is the impact testing machine made?
A: Our impact testing machine is made in China.
Q: What certifications does the impact testing machine have?
A: Our impact testing machine has CE and ISO certifications.
Q: What is the minimum order quantity for the impact testing machine?
A: The minimum order quantity for our impact testing machine is 1 set.
Q: What is the price of the impact testing machine?
A: Our prices are negotiable, please contact us for a quote.
Q: What are the packaging details for the impact testing machine?
A: Our impact testing machine is packaged with clear sheet, sponge, and a wood carton.
Q: What is the delivery time for the impact testing machine?
A: The delivery time for our impact testing machine is 20-30 days after order confirmation.
Q: What are the payment terms for the impact testing machine?
A: We accept TT, PayPal, Moneygram, and other payment methods.
Q: What is the supply ability for the impact testing machine?
A: Our supply ability for the impact testing machine is 200 sets per month.
