| Nguồn gốc: | Xuất xứ Trung Quốc |
| Hàng hiệu: | Infinity Machine |
| Chứng nhận: | CE, ISO |
| Model Number: | RS-8330 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Giá bán: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Test amount: | 1 pcs | Test load: | 100gf~2000gf (or specified) |
|---|---|---|---|
| Test speed: | 1~60times/min or 30～240times/min | Test cycle: | 1~999,999times (cycle) |
| Dimension: | 420x480x550mm | Weight: | 55kg |
| Adjustable table height: | 0~100mm | Power supply: | AC220V 50Hz 5A or specified by user |
| Điểm nổi bật: | keyboard key tester,button pull test machine |
||
Mechanical Keystroke Tester Economic Type 100gf - 2000gf with 220V 50Hz
Model: RS-8330
Purpose:
Apply for key life time test of mobile, telephone, in-car system, PDA, Bluetooth earphone, Remote control, MP3/CD and the other non-listed small consuming electronic products as well as connectors & springs life time testing.
Features:
Can test mechanical life span & electrical life span (on/off conductive test)
Every testing station is independent control & working: times/conduct/on/off/speed & etc.
Every testing station can test 3 keys at one time, pressure is adjustable, and with calibrating system to control the hitting force.
Specification:
| Model | RS-8330 |
| Test amount | 1set |
| Test load | 100gf~2000gf (or specified) |
| Test speed | 1~60times/min or 30～240times/min (or specified) |
| Test cycle | 1~999,999times (cycle) |
| Dimension (WxDxH) | 420x480x550mm |
| Weight | 55 kg |
| Adjustable table height | 0~100mm |
| Power supply | AC220V 50Hz 5A or specified by user |

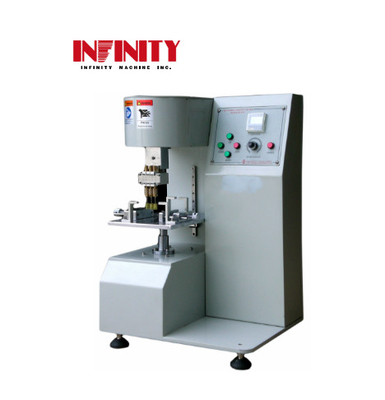

Picture:
