Remote Control Keystroke Tester Button Lifetime Testing with Panasonic Motor

Remote Control Keystroke Tester Button Lifetime Testing with Panasonic Motor

    • Remote Control Keystroke Tester Button Lifetime Testing with Panasonic Motor
    • Remote Control Keystroke Tester Button Lifetime Testing with Panasonic Motor
  • Remote Control Keystroke Tester Button Lifetime Testing with Panasonic Motor

    Thông tin chi tiết sản phẩm:

    Nguồn gốc: Xuất xứ Trung Quốc
    Hàng hiệu: Infinity Machine
    Chứng nhận: CE, ISO
    Model Number: RS-8330C-5

    Thanh toán:

    Minimum Order Quantity: 1 set
    Giá bán: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Tiếp xúc
    Chi tiết sản phẩm
    Test amount: 5 Sets Test load: 100gf-2000gf (or specified)
    Test speed: 1-60 times/min or 30-240 times/min Adjustable table height: 0-100mm
    Dimension: 900x460x1100mm Weight: 200kg
    Điểm nổi bật:

    force testing machine

    ,

    button pull test machine



    Remote Control Keystroke Tester Button Lifetime Testing with Panasonic Motor



    Model: RS-8330C-5



    Purpose:



    It is applied for keystroke life-span test of computer mouse, telephone, mobile phone in-car system, PDA, Bluetooth earphone, Remote control, MP3/CD and the other non-listed small consuming electronic products as well as connectors & springs life-Span testing.



    Features:



    Every testing station is independent control & working: times/conduct/on/off/speed &etc.



    Every testing station can test 3 keys at one time, pressure is adjustable and with calibrating system to control the hitting force.



    Adopt Japan Panasonic motor driver, with low noise and long testing life time.



    Specification:



     Model  RS-8330C-5
     Test amount  5 Sets
     Test load  100gf~2000gf (or specified)
     Test speed  1~60times/min or 30~240times/min (or specified)
     Test cycle  1~999999times (cycle)
     Adjustable table height  0~100mm
     Dimension (WxDxH)  900x460x1100mm
     Weight  200 kg
     Power Supply  AC220V 50Hz 5A or specified by user



    Picture:

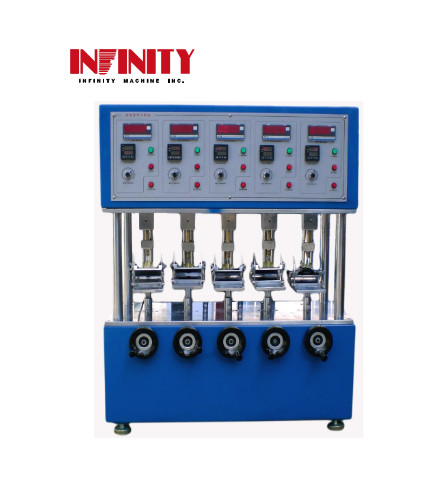

    Remote Control Keystroke Tester Button Lifetime Testing with Panasonic Motor 0



    Remote Control Keystroke Tester Button Lifetime Testing with Panasonic Motor 1
