Stepping Hinge Torsion Spring Tester High Precise Load Cell Touch Screen

Stepping Hinge Torsion Spring Tester High Precise Load Cell Touch Screen

    • Stepping Hinge Torsion Spring Tester High Precise Load Cell Touch Screen
    • Stepping Hinge Torsion Spring Tester High Precise Load Cell Touch Screen
  • Stepping Hinge Torsion Spring Tester High Precise Load Cell Touch Screen

    Thông tin chi tiết sản phẩm:

    Nguồn gốc: Xuất xứ Trung Quốc
    Hàng hiệu: Infinity Machine
    Chứng nhận: CE, ISO
    Model Number: RS-6300A / RS-6300A II

    Thanh toán:

    Minimum Order Quantity: 1 set
    Giá bán: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Tiếp xúc
    Chi tiết sản phẩm
    Control method: LDC+PLC / Touching screen+PLC Max test rang: 17” Notebook
    Test load: 50kgf.cm / 100kgf.cm Testing table adjustable range: 0~50mm(adjustable)
    Test speed: 1~15times/min / 1~30times/min Dimension: 945x645x780mm / 1130x745x1550mm
    Weight: 120kg / 200kg Power supply: AC220V 50Hz 5A or specified by user
    Điểm nổi bật:

    torsional testing machine

    ,

    torsion spring tester



    Stepping Hinge Torsion Spring Tester High Precise Load Cell Touch Screen



    Model: RS-6300A / RS-6300A II



    Purpose:



    This tester is used for testing the hinge of laptop computer & DVD and other foldable electronic products. To check the holding capability of the hinge and to check if the plastic body is damage by getting higher resistance of hinge after many opening and closing.



    Features:



    1. All the testing conditions is set at touching panel directly;

    2. Test angle between 0-180 °, the tolerance is within 1 °, as it is controlled by servo motor driver.

    3, Adopt Mitsubishi LCD touching screen+PLC as program control with high quality, can display the right angle and speed in swing testing.

    4. Adopt motor driving up and down testing table, with micro adjusting function and axis center matching function, to assure effect of test grip and testing accuracy.

    5. Adopt sever motor driver which is low noise, big torque, durable using.

    6. Force from both side to keep balance, to make sure stable testing condition.

    7. Can set the pause time, swing speed (open & close can be set to different speed).



    Specification:



     Model  RS-6300A( Stepping )  RS-6300A II ( Servo )
     Control method  LDC+PLC  Touching screen+PLC
     Max test rang  17” Notebook
     Test load  50kgf.cm  100kgf.cm
     Testing table adjustable range  0~50mm(adjustable)
     Test speed  1~15times/min  1~30times/min
     Test angle  0~180°
     Test cycle  1~999,999times (cycle)
     Dimension (WxDxH)  945x645x780mm  1130x745x1550mm
     Weight  120kg  200kg
     Power supply  AC220V 50Hz 5A or specified by user



    Picture:

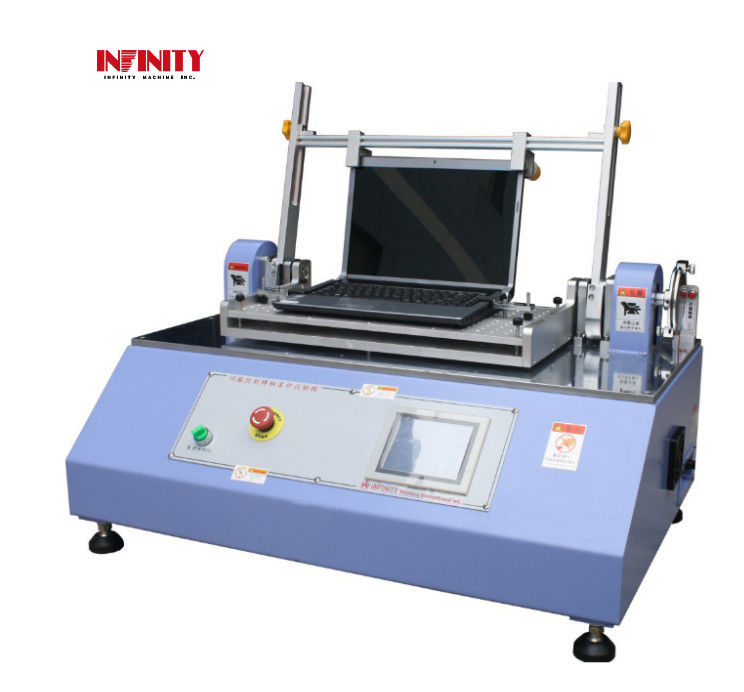

    Stepping Hinge Torsion Spring Tester High Precise Load Cell Touch Screen 0



    Stepping Hinge Torsion Spring Tester High Precise Load Cell Touch Screen 1
