| Nguồn gốc: | Xuất xứ Trung Quốc |
| Hàng hiệu: | Infinity Machine |
| Chứng nhận: | CE, ISO |
| Model Number: | RS-6700 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Giá bán: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Control method: | Touching screen+PLC | Test load (max): | 150kgf.cm |
|---|---|---|---|
| Testing table adjustable range: | 0～300mm ( motor ) | Test speed adjustable range: | 1~30 times/min |
| Max test rang: | 32” LCD | Dimension: | 1130x745x1550mm |
| Weight: | 200 kg | Power supply: | AC220V 50Hz 5A or specified by user |
| Điểm nổi bật: | torque testing machine,torsion spring tester |
||

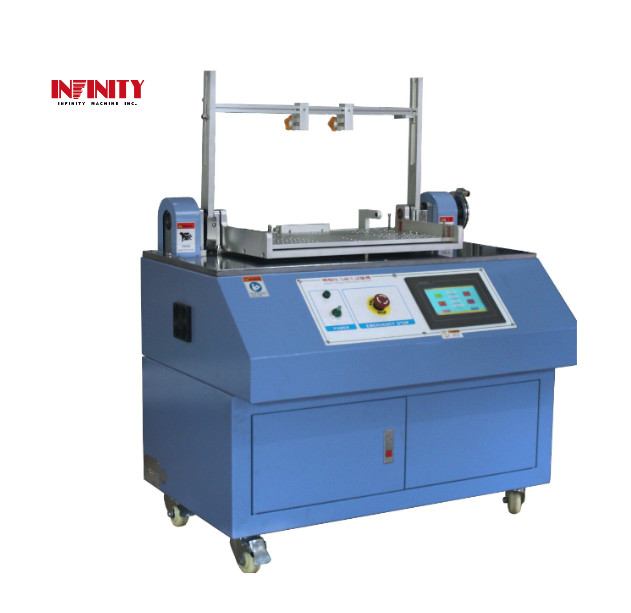

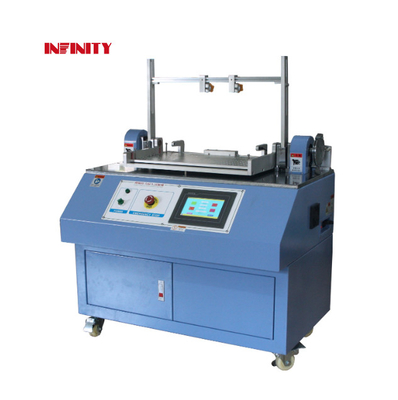

LCD Monitor Electronic Torque Tester 150 kgf.cm Computerized 220 V 50 Hz
Model: RS-6700
Purpose:
This tester is used for testing the hinge of LCD MONITOR, LCD TV, PLASMA TV, to check the holding capability of the hinge and to check if the plastic body is damage by getting higher resistance of hinge after many opening and closing.
Features:
All the testing conditions is set at touching panel directly;
Test angle between 0-180 °, the tolerance is within 1 °, as it is controlled by servo motor driver.
Adopt Mitsubishi LCD touching screen+PLC as program control with high quality, can display the right angle and speed in swing testing.
Adopt motor driving up and down testing table, with micro adjusting function and axis center matching function, to assure effect of test grip and testing accuracy.
Adopt sever motor driver which is low noise, big torque, durable using.
Force from both side to keep balance, to make sure stable testing condition.
Can set the pause time, rotating speed (open & close can be set to different speed).
Specification:
| Model | RS-6700 ( Motor ) |
| Control method | Touching screen+PLC |
| Test load (max) | 150kgf.cm |
| Testing table adjustable range | 0～300mm ( motor ) |
| Test speed | 1~30 times/min |
| Max test rang | 32” LCD |
| Test angle | 0~180° |
| Test cycle | 1~999,999times (cycle) |
| Dimension (WxDxH) | 1130x745x1550mm |
| Weight | 200 kg |
| Power supply | AC220V 50Hz 5A or specified by user |
Picture:
