| Nguồn gốc: | Xuất xứ Trung Quốc |
| Hàng hiệu: | Infinity Machine |
| Chứng nhận: | CE, ISO |
| Model Number: | RS-8105 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Giá bán: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Turn plate: | Thickness 10mm | Weight: | 170kg |
|---|---|---|---|
| Bending speed: | 10~40mumbers/min(adjustable) | Dimension: | 830x750x1140mm |
| Power: | AC220V 5A or specified by user | ||
| Điểm nổi bật: | bend test equipment,cable testing machine |
||

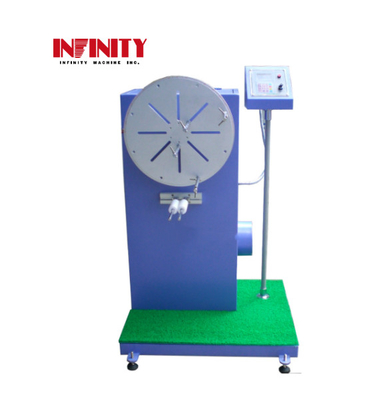

Cord Bend Test Equipment / Tensile testing machine 10 - 40 mumbers/min Speed
Model: RS-8105
Application:

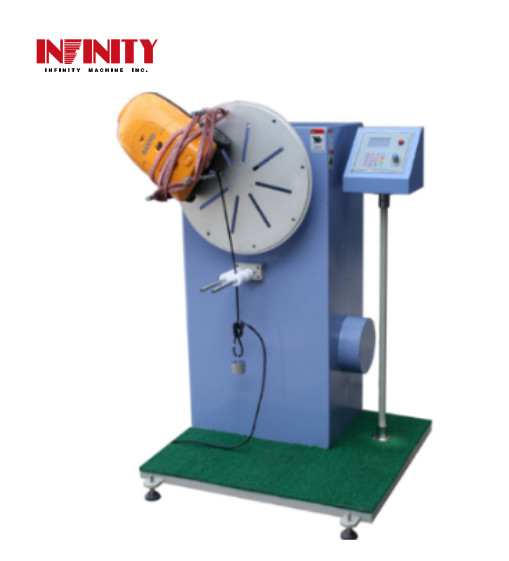

Fix the appliance (connector, dryer, cleaner, etc.) on turnplate, the outlet of the power cable forward to the center of the turnplate. Pull the cable vertically with load at rated bending speed, angle and times then to begin the bending test. When the tester stops automatically, check the jacket damage and the breakage rate of conductors.
Specification:
| Model | RS-8105 |
| Turn plate | Thickness 10mm |
| Weight | 300g, 500g |
| Bending speed | 10~40mumbers/min(adjustable) |
| Bending angle | 40°, 60°, 90° per L/R side |
| Dimension (WxDxH) | 830x750x1140mm |
| Weight | 170kg |
| Power supply | AC220V 5A or specified by user |
Package:
