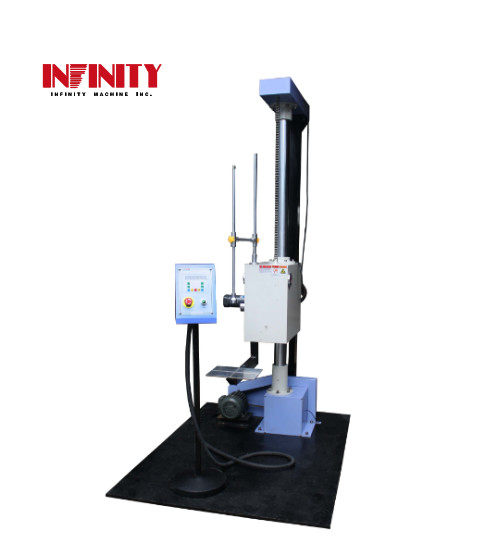

Thiết bị kiểm tra gói cánh tay đơn cho thử nghiệm thả, 300 ~ 1500mm Hight

Single Arm Package Testing Equipment for Drop Test 300~1500mm Hight

Model: RS-315 / 320 / 330

Purpose:

Package Testing Equipment is suitable for toys, electronics, electric appliance, communication, IT, furniture, gifts, ceramics and package, all this finished product or parts to do drop test, either drop of only product or drop with package, to assess the dropping impact-resistance or damage condition of the product in transporting.

Quoted standards: GB4757.5-84 JB/T7407-94 ISO2248-1995

Package- Dropping Test under Vertical Impact for Complete and Fully Loaded Package during transport.

Characteristics:

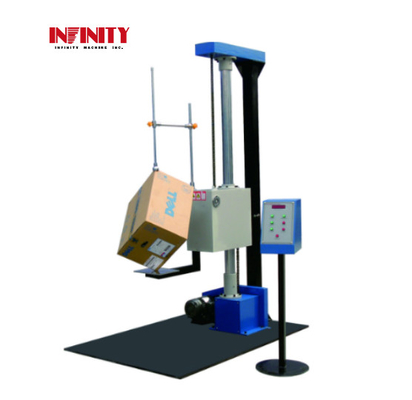

This equipment is specified for the free dropping testing against the side, angle and edge of packages. It has digital height display instrument and decoder is used to track the height, through which the dropping height can be precisely displayed, the measured dropping height has a deviation of less than 2% or 10mm comparing with preset dropping height. This equipment has structure of single arm combining with double props, it also has electrical driving, electrically controlled dropping and electrical lifting devices, easy for use; it has special hydraulic buffering device of which can largely extend the lifetime, stability and safety. Single arm structure has the convenience for sample location; the angle deviation from dropping angle against the impacted face is no more than 5degrees.

Specification:

Package:
