Name: Mobile Device Directional Drop Testing Machine Free Fall Drop Tester IEC 60068-2-31 IEC 60068-2-32
Brand: Infinity Machine International Inc.
SKU: ID1200
Price: 100000.00 USD
Availability: InStock

Nhà Sản phẩm Máy kiểm tra thả

Mobile Device Directional Drop Testing Machine Free Fall Drop Tester IEC 60068-2-31 IEC 60068-2-32

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Được làm ở Trung Quốc
Hàng hiệu:	Infinity Machine Inc.
Chứng nhận:	ISO
Số mô hình:	ID1200

Thanh toán:

Số lượng đặt hàng tối thiểu:	1
Giá bán:	Negotiate
chi tiết đóng gói:	Miếng bọt biển+thùng gỗ
Thời gian giao hàng:	35 ~ 40 ngày sau khi được xác nhận đơn đặt hàng
Điều khoản thanh toán:	T/t
Khả năng cung cấp:	50 bộ mỗi tháng

Tiếp xúc

Chi tiết sản phẩm

Tên sản phẩm:	Máy thử thả định hướng	Người mẫu:	ID1200
Ứng dụng:	Thiết bị này phù hợp để thử nghiệm thử nghiệm điện thoại di động, máy tính bảng và các sản phẩm điện	Tính năng:	Áp dụng màn hình cảm ứng LCD màu + PLC để điều khiển và cài đặt hành động. Chiều cao thả có thể được
Tiêu chuẩn:	JIS C 0044, IEC 60068-2-31, IEC 60068-2-32	giảm chiều cao:	300 ~ 2000mm （Hoặc tùy chỉnh)
Trọng lượng tối đa của mẫu vật cho phép:	3kg	Kích thước mẫu tối đa cho phép:	Thích hợp cho máy tính xách tay 17 inch, tối đa. chiều dài 40cm
Quyền lực:	Điện tử	Bảo hành:	1 năm
Làm nổi bật:	mobile device drop testing machine , free fall drop tester IEC 60068-2-31 , directional drop testing machine with warranty

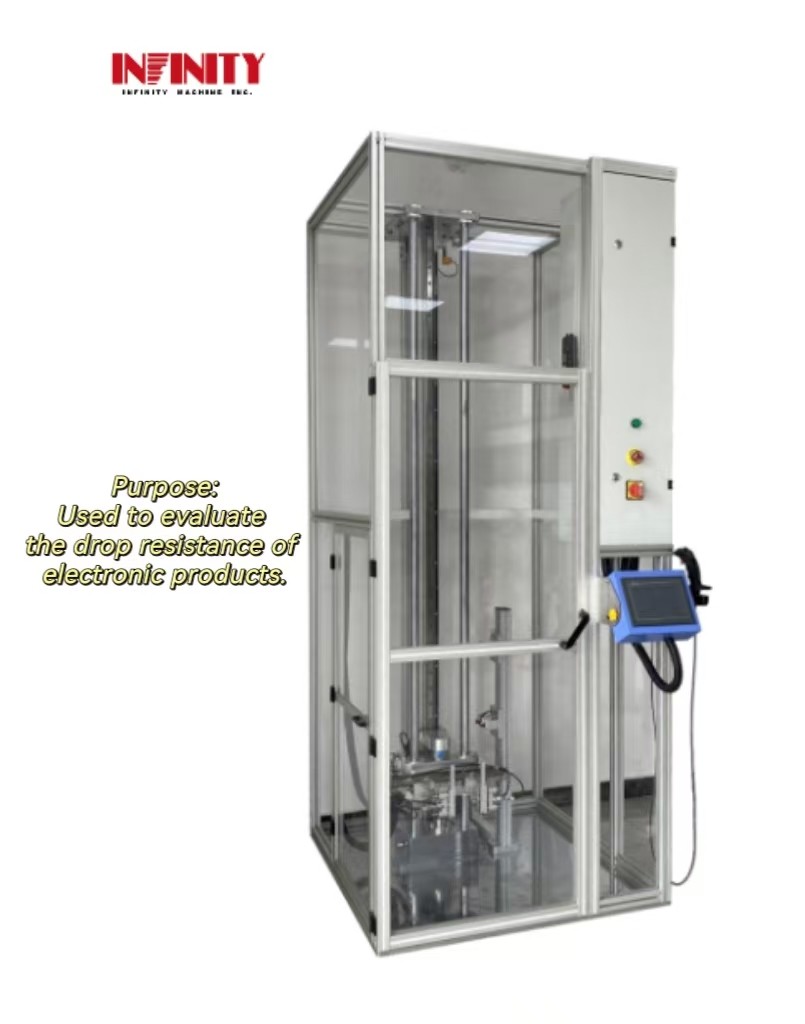

Mobile Device Directional Drop Testing Machine Free Fall Drop Tester IEC 60068-2-31 IEC 60068-2-32

Attribute	Value
Product name	Directional Drop Testing Machine
Model	ID1200
Application	This equipment is suitable for drop testing of mobile phones, tablet computers, and various small consumer electronic products.
Feature	Adopts color LCD touch screen + PLC for action control and setting. The drop height can be set directly. It will automatically stop when reaching the set height. The number of drops can be preset and has a power-off memory function. All controls are completed on the touch screen.
Standards	JIS C 0044, IEC 60068-2-31, IEC 60068-2-32
Drop height	300~2000mm (or customized)
Maximum weight of specimen allowed	3kg
Maximum sample size allowed	Suitable for 17-inch notebooks, max. length 40cm
Power	Electronic
Warranty	1 Year

Application of Equipment

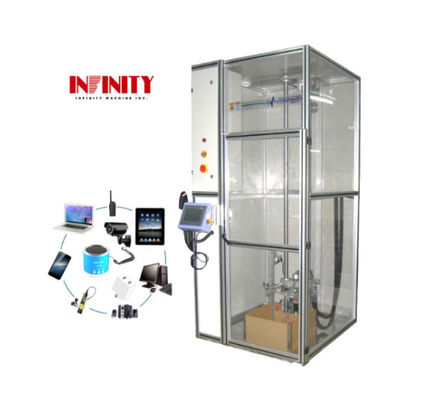

Mobile device drop testing machines are suitable for drop testing of mobile phones, tablet computers, and various small consumer electronic products. Directional drop test machine can accurately impact the parts that need to be tested to evaluate the product's ability to withstand drops.

Features

Using AC servo motor + synchronous belt to adjust the drop height, the height positioning is accurate.
Adopts color LCD touch screen + PLC for action control and setting. The drop height can be set directly. It will automatically stop when reaching the set height. The number of drops can be preset and has a power-off memory function.
The product is released at a height of 300mm, and the product drop angle is close to the test setting angle.
A variety of drop boards are available: steel plates, wooden boards, and marble boards, which are suitable for testing requirements in many countries.
Automatic counting (number of falls) function, switchable between maintain fall mode/free fall mode.
It is protected by a protective cover all around, and a safety door is used at the entrance to ensure the safety of operators.
The software can set and save the compensation height formula, up to 999 groups can be saved. Compensation can be quickly switched when applying different size specimen compensation.

Specification Parameters

Projects	Specifications
Implementation standards	JIS C 0044; IEC 60068-2-31; IEC 60068-2-32
Drop height	300~2000mm (Or customized)
Maximum weight of specimen allowed	3Kg
Maximum sample size allowed	Suitable for 17-inch notebooks, maximum length 40cm
Drop medium	Steel plate, 19mm wooden board, marble plate (or specified)
Sample fixture method	Clamping type
Number of drops	1~999999 (Can be set)
Gas source	≥0.5MPa
Drop acceleration	-5% (Above 0.95G)
Machine size (WxDxH)	W1200xD1200xH2200mm
Machine weight	Around 460kg
Working power supply	AC220V 5A 50Hz

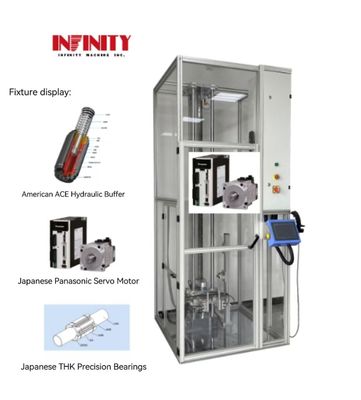

Clamp Display

Clamping method: 0 degree, 45 degree, 90 degree with automatic positioning fixture

Support and Services

The Drop Testing Machine product technical support and services include:

Installation and setup guidance
Calibration and maintenance services
Troubleshooting and repair assistance
Software updates and upgrades
Training and education on machine operation and safety
Consultation on testing standards and procedures

Packing and Shipping

Product Packaging: The Drop Test Machines will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.

Shipping: The shipping of the Drop Testing Machine will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
