| Nguồn gốc: | SẢN XUẤT TẠI TRUNG QUỐC |
| Hàng hiệu: | Infinity Machine Inc. |
| Chứng nhận: | ISO |
| Số mô hình: | dòng IE60 |
| Số lượng đặt hàng tối thiểu: | 1 |
|---|---|
| Giá bán: | Negotiate |
| chi tiết đóng gói: | Tấm trong suốt + miếng bọt biển + hộp gỗ |
| Thời gian giao hàng: | 20-30 ngày sau khi xác nhận đơn hàng |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 200 bộ mỗi tháng |
| Tên sản phẩm: | Phòng thử nghiệm tia cực tím | Người mẫu: | dòng IE60 |
|---|---|---|---|
| Phạm vi nhiệt độ: | RT+20℃~70℃ | Phạm vi độ ẩm: | ≥90%RH |
| Tiêu chuẩn áp dụng: | ISO 4892-3 ISO 11507; ASTM D4329 D499 D4587 D5208 、 G154 G53 ; | Tính năng: | Hoạt động tự động của kiểm soát thiết bị, chu kỳ thử nghiệm tự động, tiết kiệm lao động, cải thiện h |
| Cấu trúc hộp: | Hộp trong nhà và ngoài trời: Thép không gỉ SUS304# được sử dụng trong hộp trong nhà và ngoài trời | Người giữ mẫu: | Tấm khung khung cơ sở loại khung nhôm, 24 chiếc |
| Quyền lực: | điện tử | Bảo hành: | 1 năm |

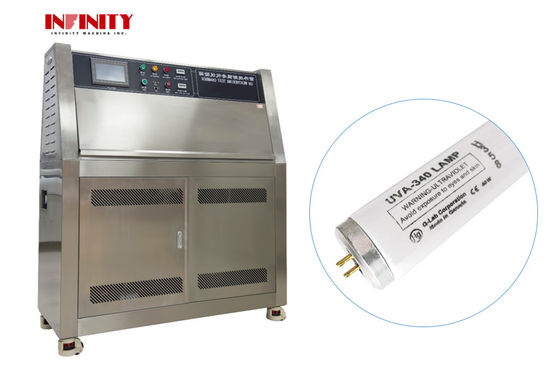

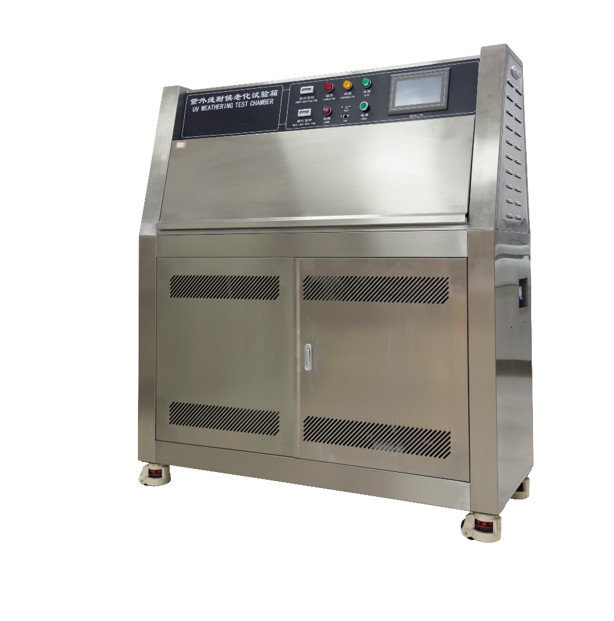

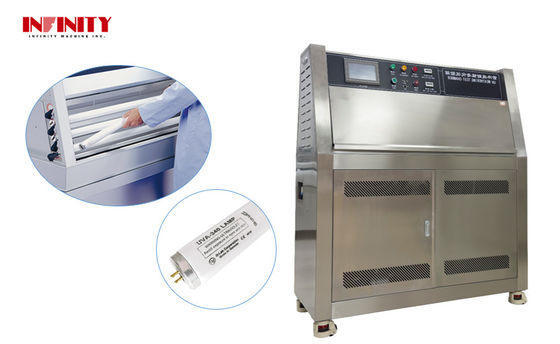

UV weathering test chamber uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.
| Parameter | IE6002 | IE6002A |
|---|---|---|
| Temperature range | RT+20℃~70℃ | |
| Humidity range | ≥90%RH | |
| Temperature fluctuation | ±0.5℃ | |
| Temperature uniformity | ≦1.0℃ | |
| Center distance inside the lamp | 70mm | |
| Distance between specimen and lamp center | 50±3mm | |
| Modulator tube | UVA-340 L=1200/40W, 8pcs | UVB-313 L=1200/40W, 8pcs |
| Irradiance | Adjustable within 1.2W/m² | Adjustable within 1.0W/m² |
| Ultraviolet wavelength | 315-400nm | 280-315nm |
| Effective irradiation region | 900*210mm | |
| Irradiated blackboard temperature | 50℃~70℃ | |
| Internal dimension: W*H*D (mm) | 1140*400*390 | |
| Outside box size: W*D*H (mm) | 1300*500*1360 | |
| Box structure | Indoor and outdoor boxes: SUS304# stainless steel | |
| Sample holder | Aluminum frame type base frame vision plate, 24pcs | |
| Standard sample size | 75*290mm | |
| Safety protection device | Leakage circuit breaker control circuit, overload, short circuit alarm, over temperature alarm, water shortage protection | |
| Power supply | AC220V, 50Hz, 5KW | |
UV Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
