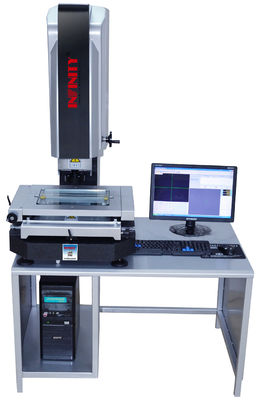

1/3“ CCD Optical Measurement Systems Test Measurement Instruments Program Control

1/3“ CCD Optical Measurement Systems Test Measurement Instruments Program Control

  • 1/3“ CCD Optical Measurement Systems Test Measurement Instruments Program Control
1/3“ CCD Optical Measurement Systems Test Measurement Instruments Program Control
Thông tin chi tiết sản phẩm:
Nguồn gốc: Xuất xứ Trung Quốc
Hàng hiệu: Infinity Machine
Chứng nhận: CE, ISO
Model Number: IN-2010S
Thanh toán:
Minimum Order Quantity: 1
Giá bán: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: 10 days after order confirmed
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Tiếp xúc
Chi tiết sản phẩm
Stroke: 200x100x200mm Outside Dim: 600x530x950mm
Weight: 78kg Load: 20kg
XY axis Measuring precision: 2.8+L/200 μm Z axis Measuring precision: 5.0+L/200 μm
Software: MAGIC-DMIS Optical lens - Multiple: Manual zoom /18X~230X
Điểm nổi bật:

optical measurement equipment

,

optical measuring instruments



1/3“ CCD Optical Measurement Systems Test Measurement Instruments Program Control



Model: IN-2010S / IN-3020S / IN-4030S / IN-5040S



Purpose:



It is a high cost-effective measurement instrument researched and developed by our company according to market demands. This product has its unique design philosophy and strong independent research and development software, and it is easy for operation, suitable for dimensional measurement of batch precision components.

It can have precision measurement on electronic components, precision mould, stamping parts, PCB board, screw thread, gear, shaped cutter and other parts. It gradually enters into institutions of higher learning, research institution, laboratory of measurement verification department, measuring room and production department, and it is also used for precision measurement of outline and surface shape of plane parts with complicated shapes.



Applications:



It applies to industries of electronics, machinery, instrument, clocks and watches, light industry, war industry and space flight and aviation, etc.



Functions:



Manual-operation 2D geometry measurement, can realize basic 3D measurement, geometric tolerance assessment and reverse engineering measurement of profile scanning.



Features:



1. The base of complete machine and stand column all adopt high-density and high-precision granite, with close structure and high stability.



2. High-precision cast iron moving platform, with high anti-friction coefficient and strong corrosion resistance and the machine is more stable when

    moving measurement.



3. Programmable LED rimming light source and constant current drive, avoiding influence to measurement precision caused by light source

    problems.



4. It can automatically find the edge and remove product rag, guaranteeing zero error of catching, making the measurement more precision.



5. Manual profile scanning, and scanning result can import CAD, making it easy to measure 2D profile. It can also import CAD drawing to MAGIG

    DMIS software, with fast contrast.



6. Manual photo function, can have panoramic photography of full scale, and can edit any size in the photo,making each measuring report clearer

    and more complete.



7. Powerful SPC application function, making it more accurate for measuring staff to know about the quality condition of each step, which reduces

    cost of poor quality as well as reject ratio.



8. Independently researched and developed MAGIC-DMIS measuring software, having applied for national patent technology, and its core algorithm

    has gained authority certification. It is powerful, can edit the 2D size of product, including combined measurement of geometric tolerance size for

    point, line, arc, angle, straightness, flatness, circular degree and cylindricity, etc.



Specification:



Model IN-2010S IN-3020S IN-4030S IN-5040S
Stroke (mm) 200x100x200 300x200x200 400x300x200 500x400x200
Outside Dim(mm) 600x530x950 780x670x1060 948x670x1095 1020x780x1200
Weight (kg) 78 89 105 135
Load (kg) 20 20 20 20
Measuring precision(μm) XY axis 2.8+L/200 2.8+L/200 2.8+L/200 3.0+L/200
Z axis 5.0+L/200
Grating ruler resolution 0.5μm
CCD 1/3“High resolution color CCD
Light source Rimming light source Program-control LED light source
Surface light source Program-control five-ring eight-zone LED light source
Coaxial light source LED cold light source brightness is adjustable
Optical lens / Multiple Manual zoom /18X~230X
Measuring head RENISHAW (optional)
Software MAGIC-DMIS
Environment Temperature:18℃ ~ 22℃ Humidity:45%~75%
Power supply AC 220 V ±10% 50Hz(or specified by user) Ground resistance <4 Ohm
