| Nguồn gốc: | Xuất xứ Trung Quốc |
| Hàng hiệu: | Infinity Machine |
| Chứng nhận: | CE, ISO |
| Model Number: | RS-6100B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Giá bán: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Test load: | 50Kgf (max) or specified | Effective compress range: | 0～200mm ( adjustable ) |
|---|---|---|---|
| Working table up and down range: | 0～100mm ( adjustable ) | Dimension: | 650x350x900mm |
| Weight: | 45kg | Power supply: | AC220V 5A or specified by user |
| Điểm nổi bật: | universal test machine,digital compression testing machine |
||

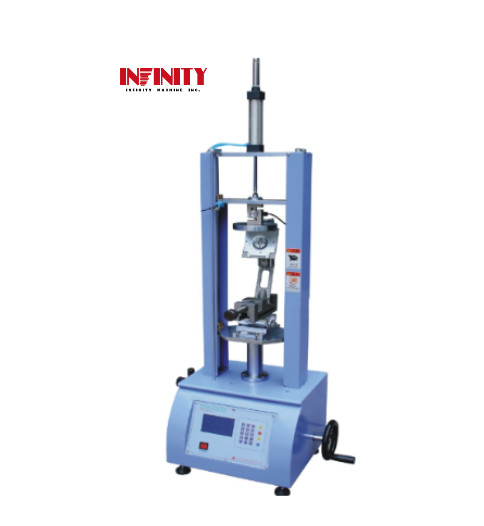

Pneumatic Springs Compressive Strength Testing Machine Ascending Descending Testing
Model: RS-6100B
Application:
This tester is suitable for the ascending and descending testing of hinge of LCD monitor.
Specification:
| Model | RS-6100B |
| Test load | 50Kgf (max) or specified |
| Effective compress range | 0-200mm ( adjustable ) |
| Test range |
2-20times/min (The stroke of the spring is <130mm) |
| Test cycle | 1~999,999times (cycle) |
| Working table up and down range | 0～100mm ( adjustable ) |
| Hinge accept Dim (WxDxH) | 200x200x500mm |
| Dimension (WxDxH) | 650x350x900mm |
| Weight | 45kg |
| Power supply | AC220V 5A or specified by user |
