| Nguồn gốc: | Xuất xứ Trung Quốc |
| Hàng hiệu: | Infinity Machine |
| Chứng nhận: | CE, ISO |
| Model Number: | RSH Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Giá bán: | có thể đàm phán |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | 7 days after order confirmed |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 250 sets per month |
| Test spee: | MAX:800mm/s | CCD: | USA TEO high resolution colorful industrial 800 TV wire |
|---|---|---|---|
| Varifocus lens: | 0.7－4.5X full-automatic zoom lens | Object space: | 10.6－1.6mm |
| Working space: | 82mm | Resolution display: | 0.0001mm |
| Repetition: | 1.5um | Power supply: | 220V±10%(AC) 50HZ current over 20A or specified |
| Làm nổi bật: | optical measuring instruments,optical measuring machine |
||

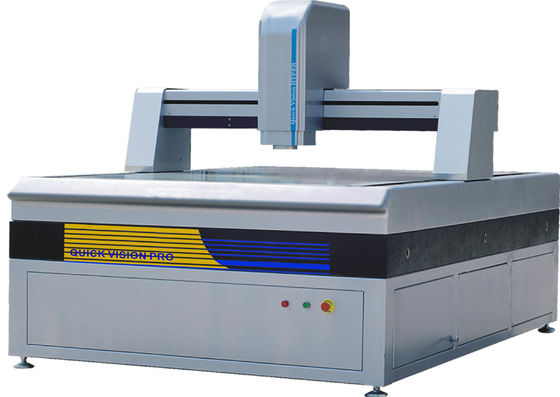

Double Column Optical Measurement Systems Automatic Zoom Lens H Type
Model: RSH Series
Character (specimen stay and double column moving)
1. Full automatic Double Column Type High Accuracy Video Measuring Instrument
2. Machine base adopt marble (00 level), solid testing platform design, make sure high stability and rigidity.
3. Adopt Japan THK grinding ball screw & THK precision guide rail, Panasonic high performance servo system full-closed control, high accuracy,
high speed, high stability.
4. Adopt USA TEO high resolution colorful industrial 800 TV wire on CCD.
5. Make sure high quality testing image and quick testing speed.
6. Full automatic zoom lens, no need to measurement after changing the lens zoom.
7. Program tetracyclic eight zone LED surface cold light, direct-axis rim cold light, (coaxial cold light for option)
8. Germany Heidenhain open type SMT optic scale 0.0005mm
9. England Renishaw touchable measuring head (Auto probe SCR system for option) and Japan Keyence Laser probe.
10. Powerful functional R&D full automatic 3D measuring software, can auto test by program.
11. Video, probe, laser test coaxial, can auto test by program.
12. Can option Z axis measuring range: 300-500mm
Technical Parameter: H type use laser detector, T type used touchable detector
|
Model Parameter |
RSH700 | RSH1000 | RSH1200 | RSH1600 | RSH1800 | RSH2500 | |
| Testing range (mm) |
X | 600 | 800 | 1200 | 1200 | 1200 | 1200 |
| Y | 700 | 1000 | 1000 | 1600 | 1800 | 2500 | |
| Z | 200 | 200 | 200 | 200 | 200 | 200 | |
| Testing platform (mm) |
Hard aluminum alloy platform | 900x800 | 1193x1010 | 1540x1240 | 1820x1440 | 2020x1440 | 2700x1700 |
| Glass platform | 870 x870 | 1168 x968 | 1500 x1200 | 1780 x1400 | 1980 x1400 | 2650 x1650 | |
| Load | 50kg | 50kg | 50kg | 45kg | 45kg | 40kg | |
|
Video & measuring system |
Test speed | MAX:800mm/s |
| CCD | USA TEO high resolution colorful industrial 800 TV wire | |
| Varifocus lens | 0.7－4.5X full-automatic zoom lens | |
|
Video amplification rate |
30－230X | |
| Object space | 10.6－1.6mm | |
| Working space | 82mm | |
| Resolution display |
0.0001mm |
| Working control system, four axis full closed-loop control, three axis AC servo motor full closed- loop control, pre-pressing linear slider and grinding ball screw driver, step motor coaxal controlling lens. | ||||||
| Repetition | 1.5μm | |||||
|
Measuring accuracy |
XYZ axis ≦(1.5+L/150)um, Z axis(optical measuring)≦(5+L/200)um | |||||
|
Dimension (mm) |
1600x1300 x1780 |
1900x1450 x1780 |
1900x1900 x1780 |
2500x1900 x1780 |
2700x1900 x1780 |
3400x2100 x1780 |
|
Machine weight (kg) |
1800kg | 2600kg | 3200kg | 3900kg | 4200kg | 5100kg |
| Light | tetracyclic eight zone LED surface cold light, direct-axis rim cold light, (coaxial cold light for option), brightness can be set | |||||
| Power supply | 220V±10%(AC) 50HZ current over 20A or specified by user | |||||
| Warranty | two years | |||||
