| Nguồn gốc: | Xuất xứ Trung Quốc |
| Hàng hiệu: | Infinity Machine |
| Chứng nhận: | CE, ISO |
| Model Number: | RS-5610C |
| Minimum Order Quantity: | 1 set |
|---|---|
| Giá bán: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Controller: | Computer Control | X axis movement range: | 0~300mm (specified before order) |
|---|---|---|---|
| Y axis movement range: | 0~300mm (specified before order) | Positioning accuracy: | 0.05mm |
| Air pressure: | ≥0.5MPa | Dimension: | 750x750x660mm |
| Weight: | About 120kg | Power source: | AC220V 50Hz 5A or specified by user |
| Điểm nổi bật: | super click tester,click speed tester |
||
0 N - 15 N LCD / Touch Screen Super Click Tester Computer Control 0.5MPa
Model: RS-5610C
Purpose:
This tester is used for pressing rolling, clicking, Drawing test for small LCD, touching screen, such as mobile phone.
Test Item:
1. Touching pen clicking test: 0-15N (or set).
2. Touching pen drawing test: drawing line on touching screen as setting.;
3. Mobile surface abrasion test: with alcohol / eraser as testing assistance.
Specification:
| Model | RS-5610C (Computer Control) |
| X-axis Moving range | 0~150mm or 0~300 (specified before order) |
| Y-axis Moving range | 0~150mm or 0~300 (specified before order) |
| Z-axis click cylinder | 0~20mm |
| Positioning accuracy | 0.05mm |
| Moving speed | 0~200mm/sec |
| Pressure range | 80~1500gf (or specified) |
| Load | 20g, 30g, 150g, 250g |
| Air pressure | ≥0.5MPa |
| Dimension (WxDxH) | 750x750x660mm |
| Weight | About 120kg |
| Power supply | AC220V 50Hz 5A or specified by user |

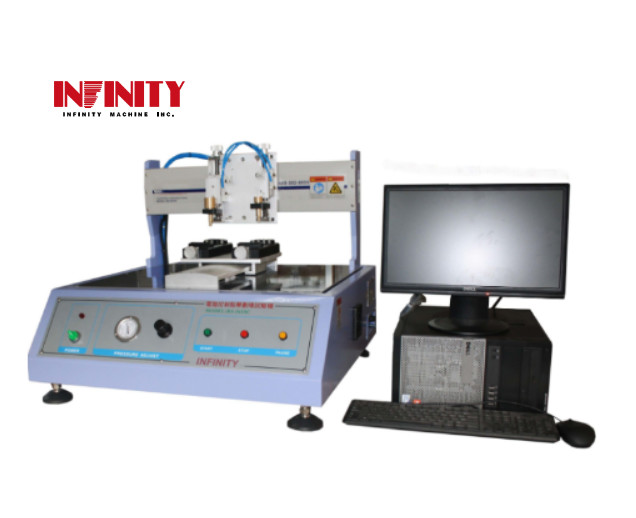

Picture:
